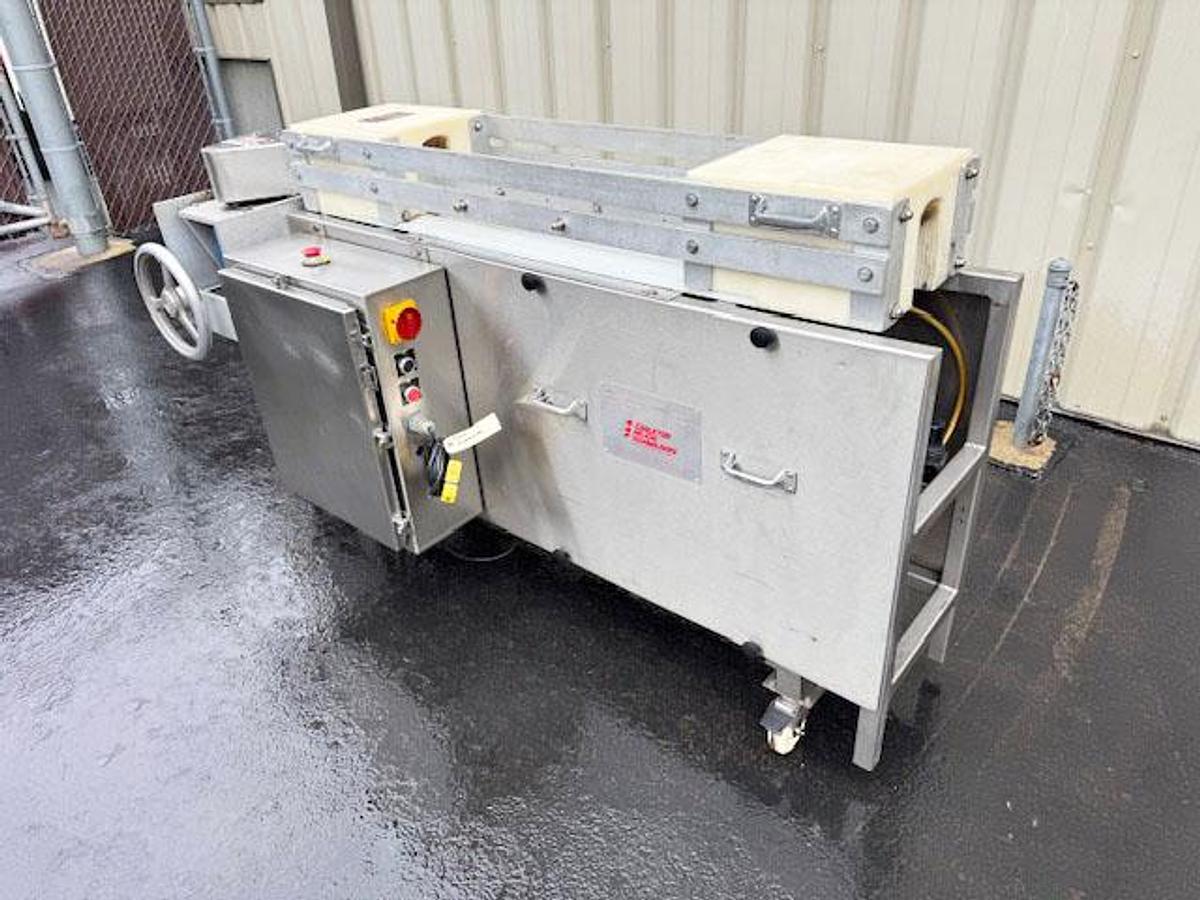

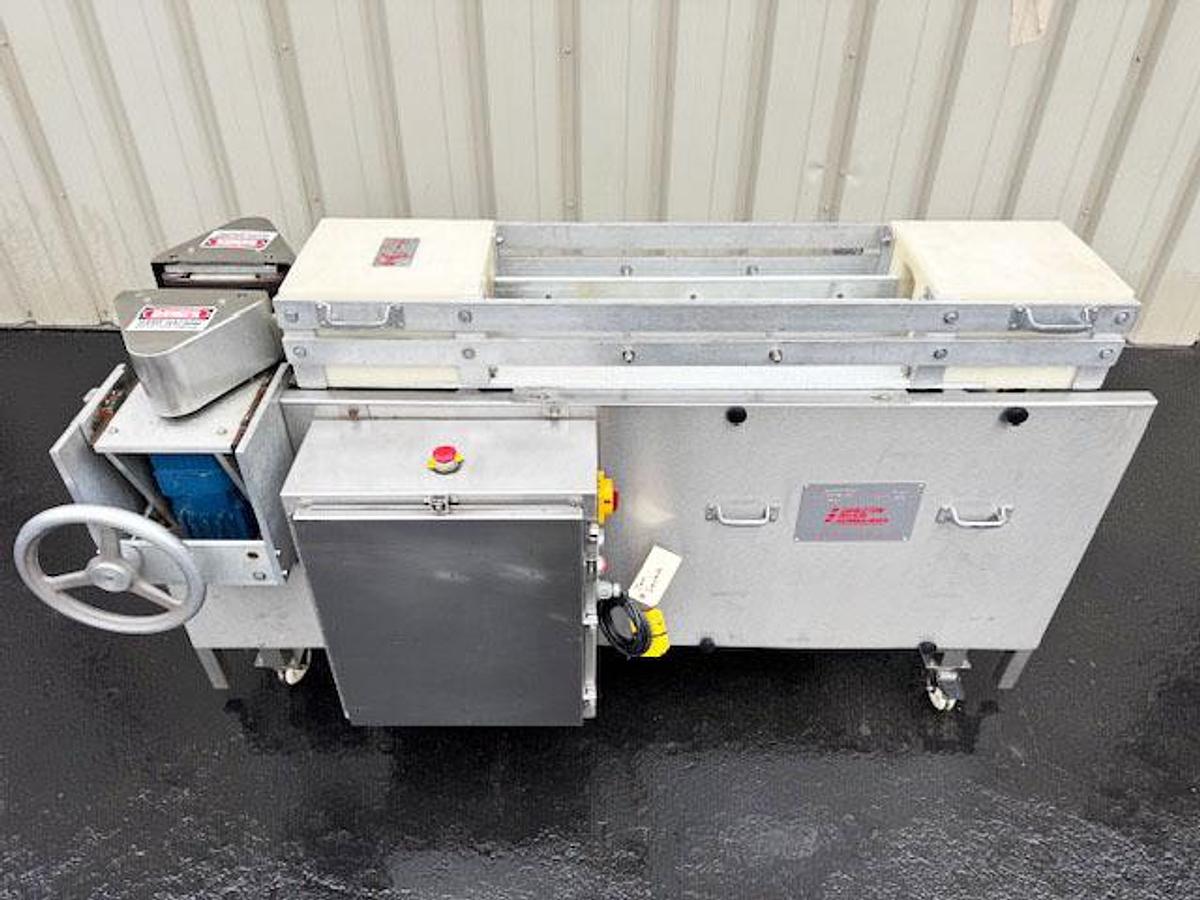

Carleton Helical Technologies Ionized Air Rinser

Carleton Helical Technologies Ionized Air Rinser

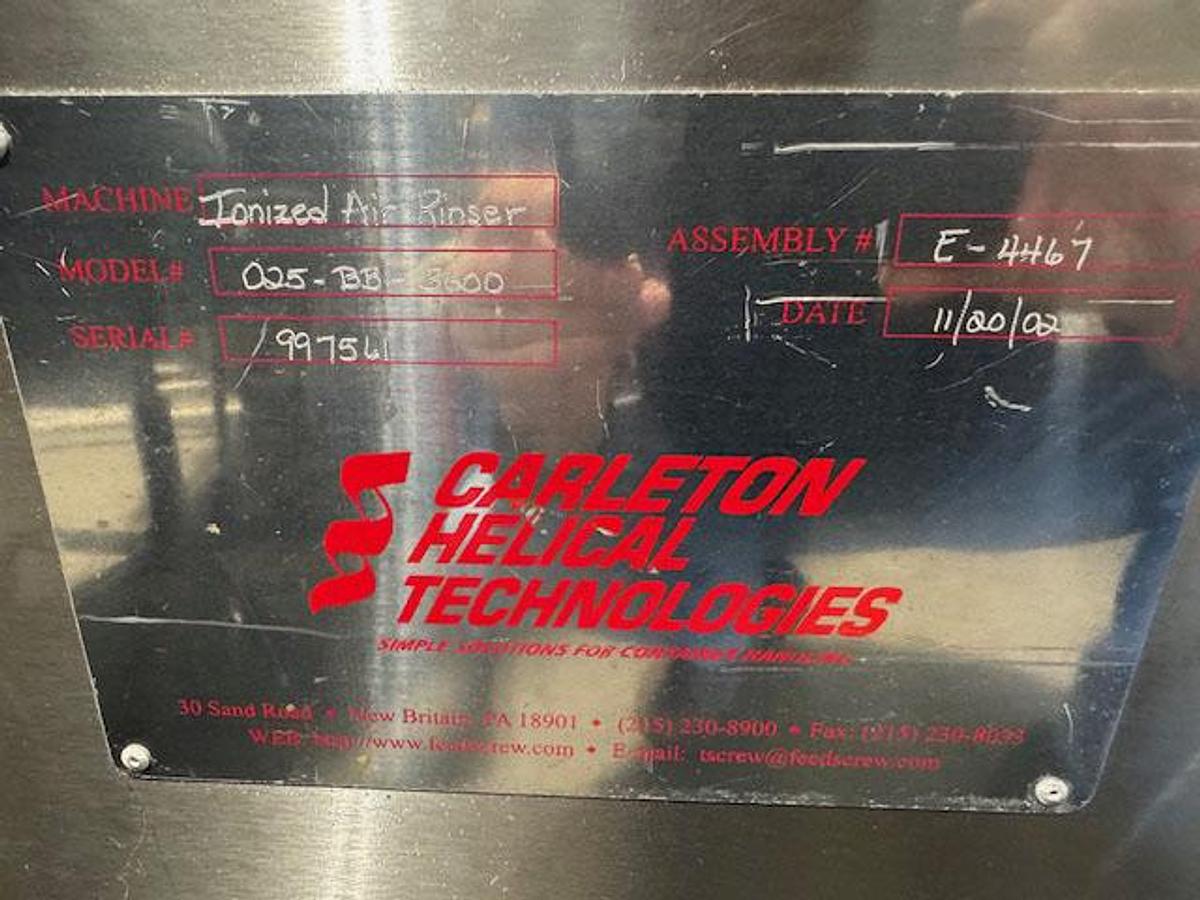

- Model 025-BB-3600

- Change parts for 16 & 64 oz glass bottles

- Serial #99756

- Speed: Up to 100/minute

- Changeover time: 10 minutes

- Handles wide mouth or narrow neck containers of glass, plastic, paper, metal – Jars, Bottles, Cans of all sizes

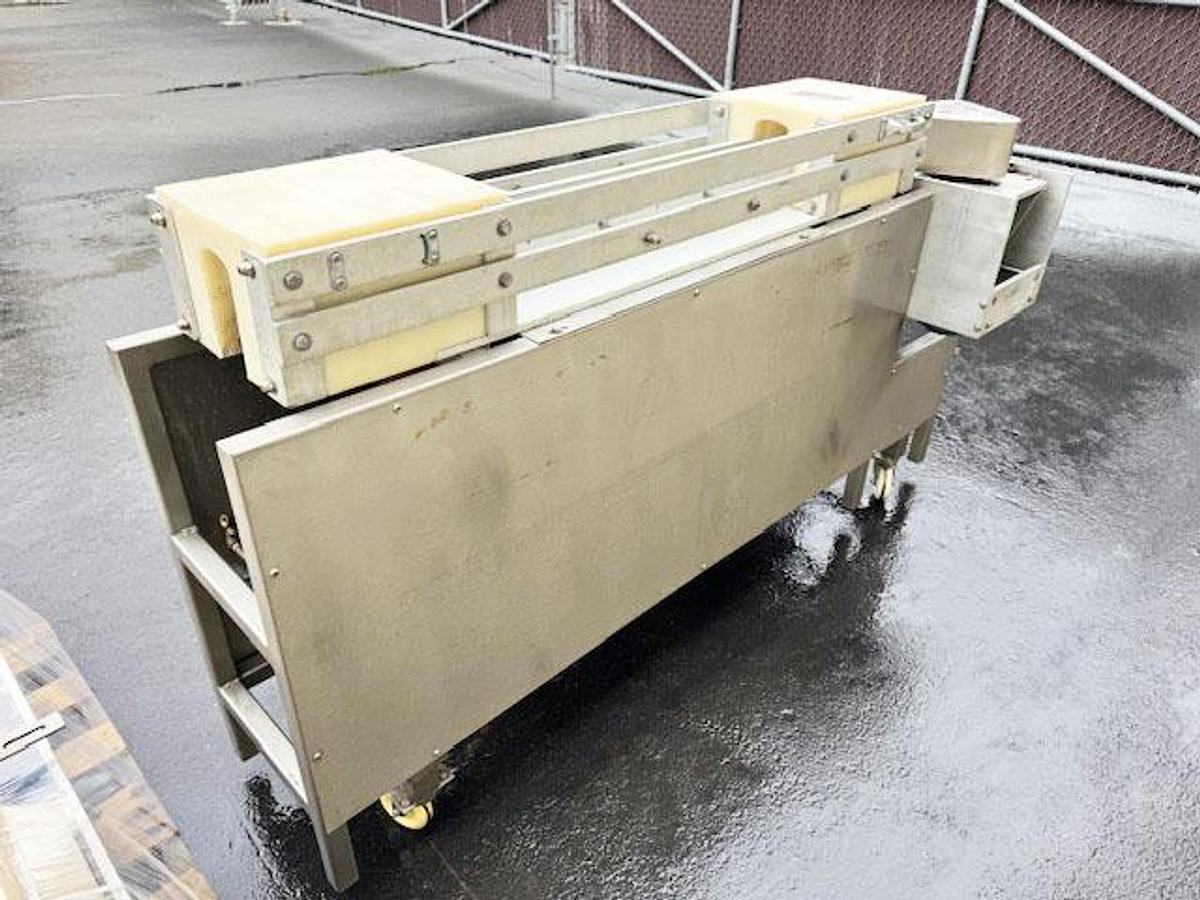

- BMH (Helical) Invertor / revertor system

- Three ionized nozzles distribute a positive charge inside and outside of the container, detaching the debris from the container. The vacuum system then collects any debris

- Stainless Steel Tubular Frame Construction

- Low friction polyethylene change parts which does not cause graphics or product abrasion

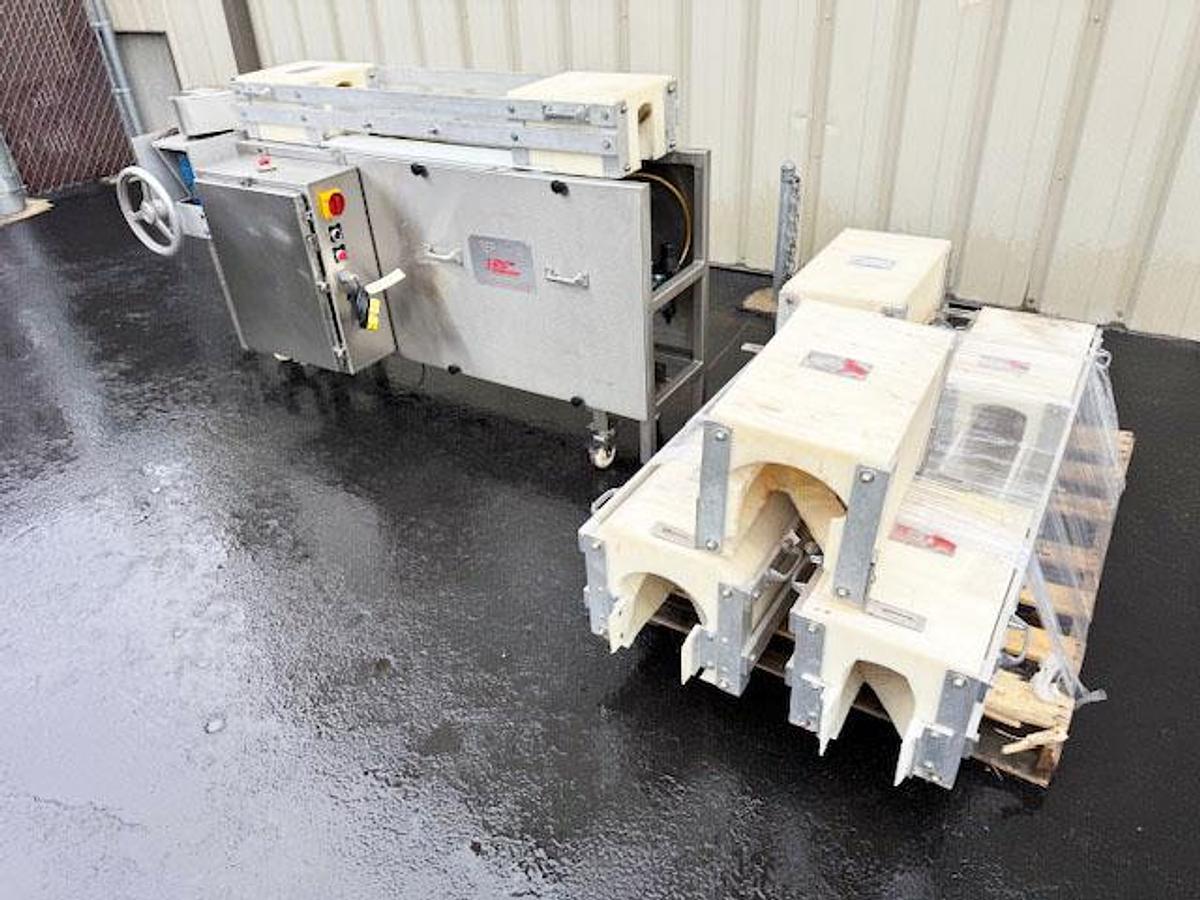

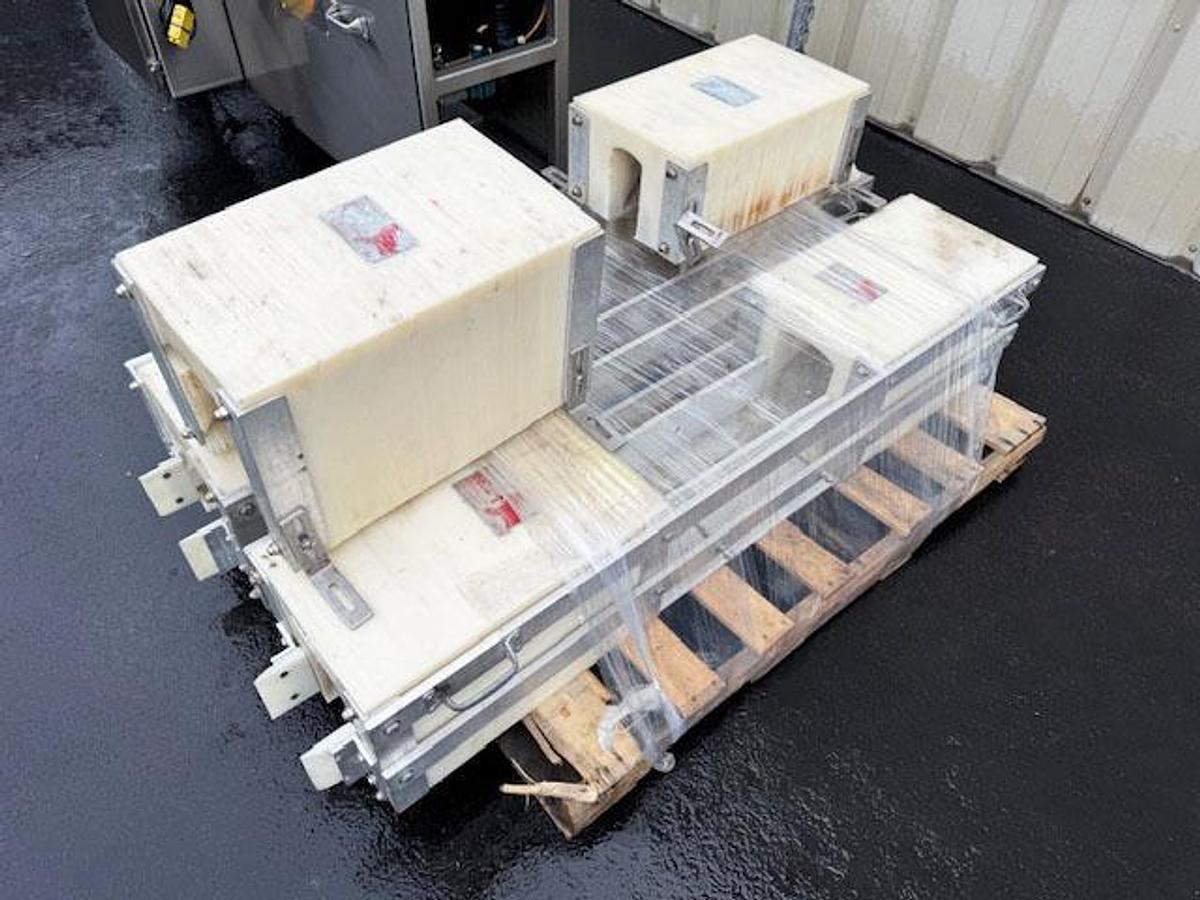

- Includes (3) existing changeover invertor/revertor parts; 16oz glass, 64oz glass, #10 cans

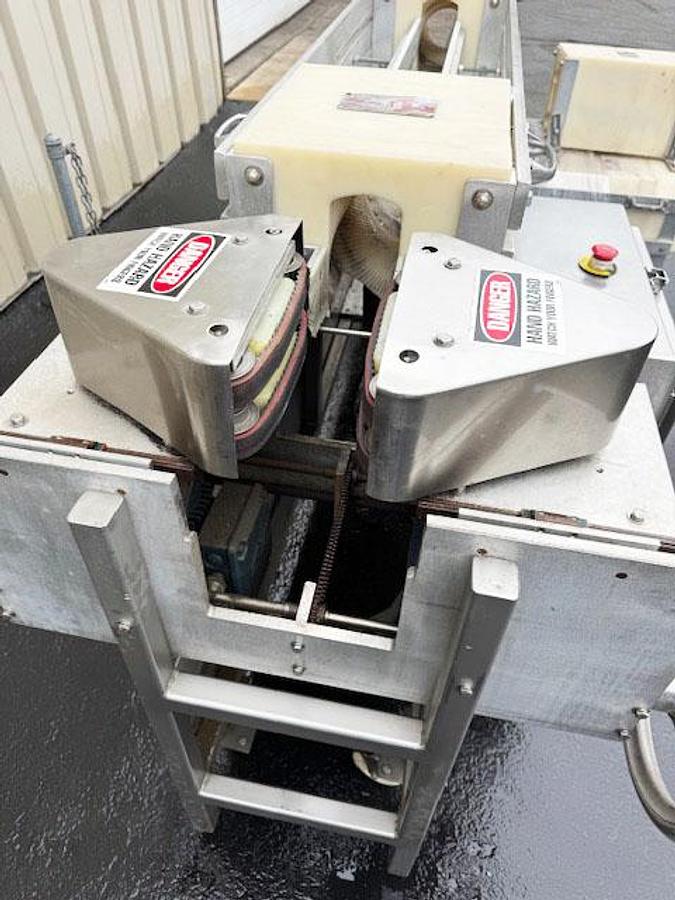

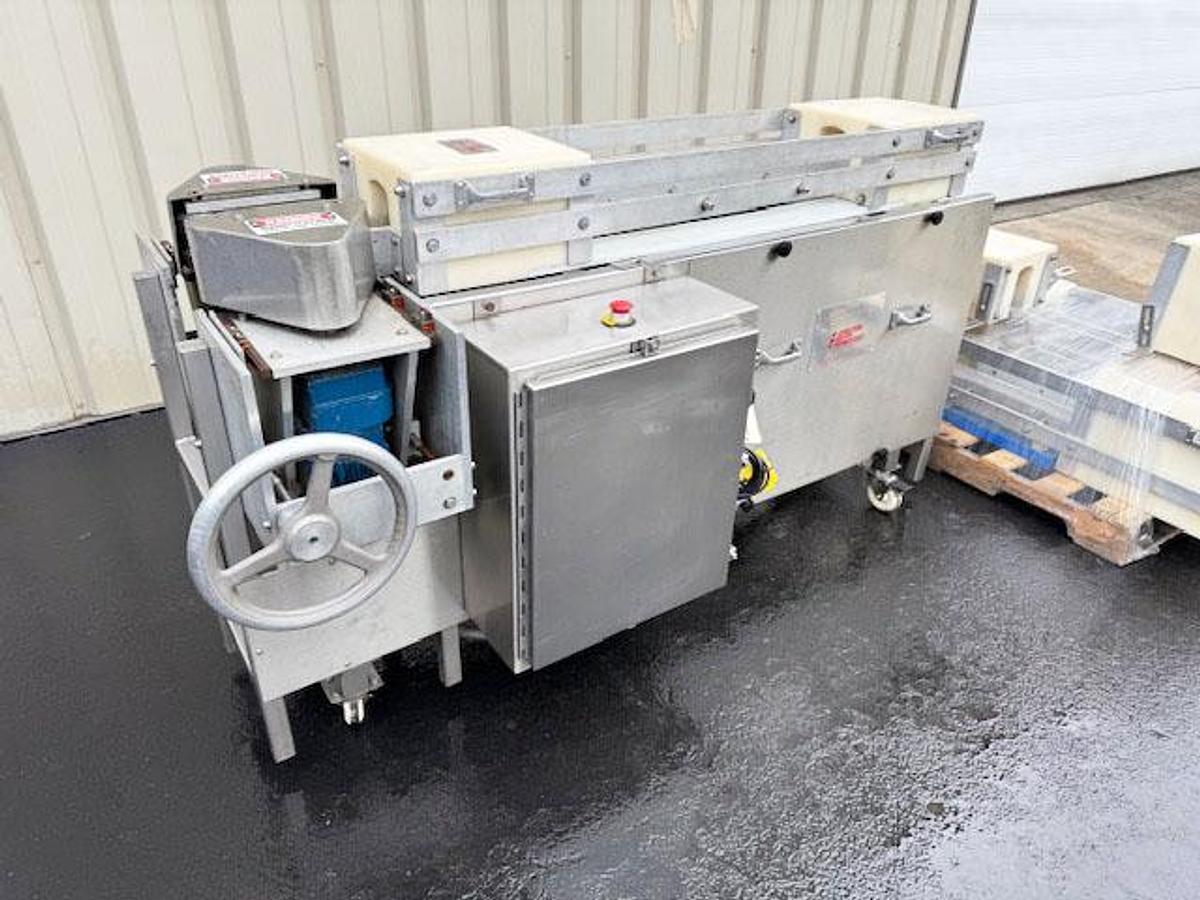

- Container dual pressure belt infeed system with handwheel adjustment

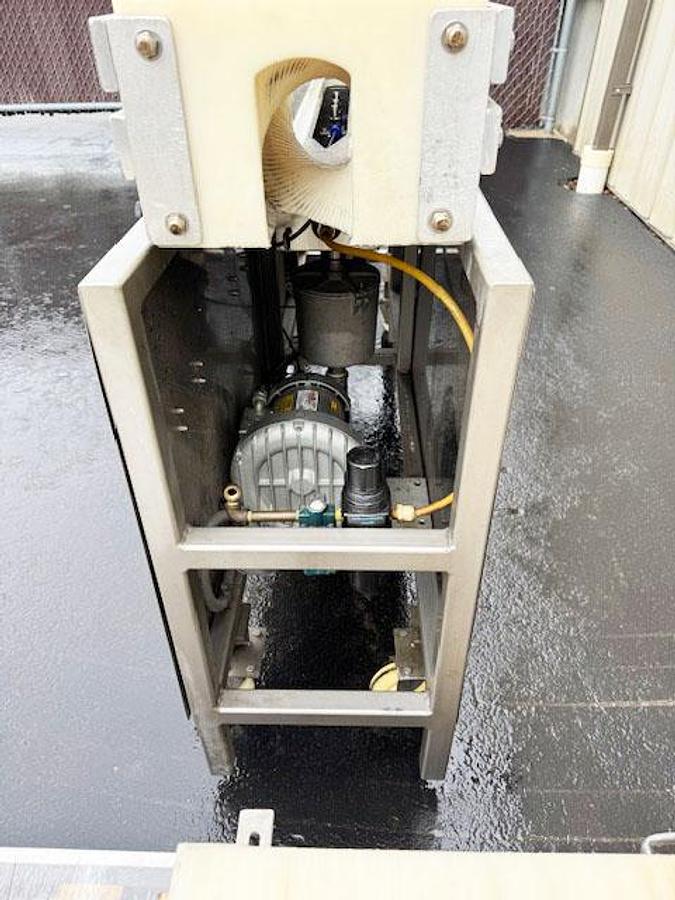

- Ionized air rinser with vacuum assist

- Allen Bradley variable speed drive

- SIMCO static control system

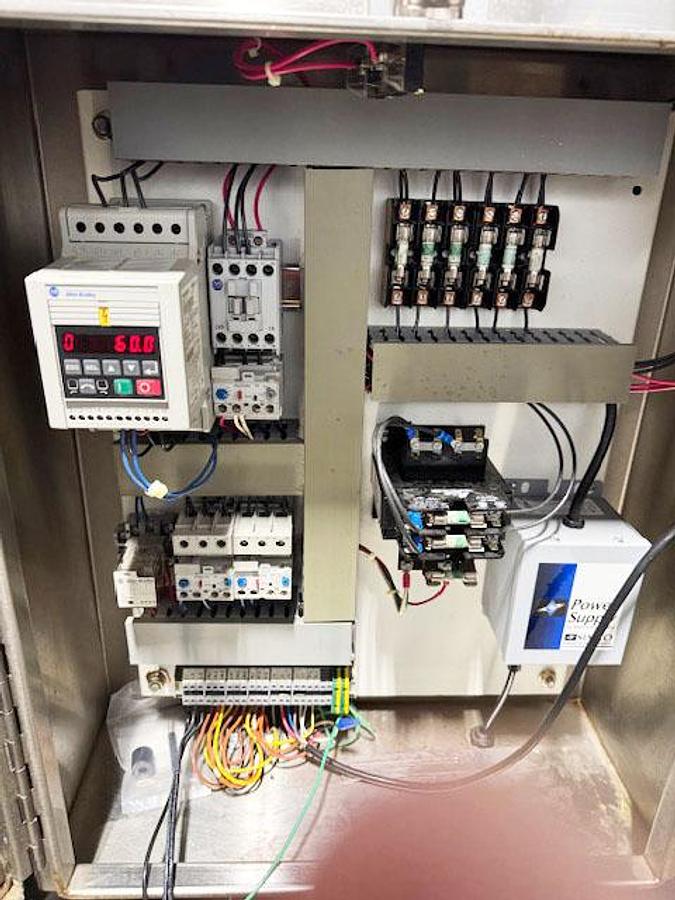

- Electrical panel with operator controls and E-stop

- Banner back up / Jam sensor

- Conveyor elevation 36” (adjustable)

- Mounted on casters

- 3 phase, 60 cycles, 230 volts

- Overall dimensions 77” L x 32” W x 44” H

- Serial #99756
