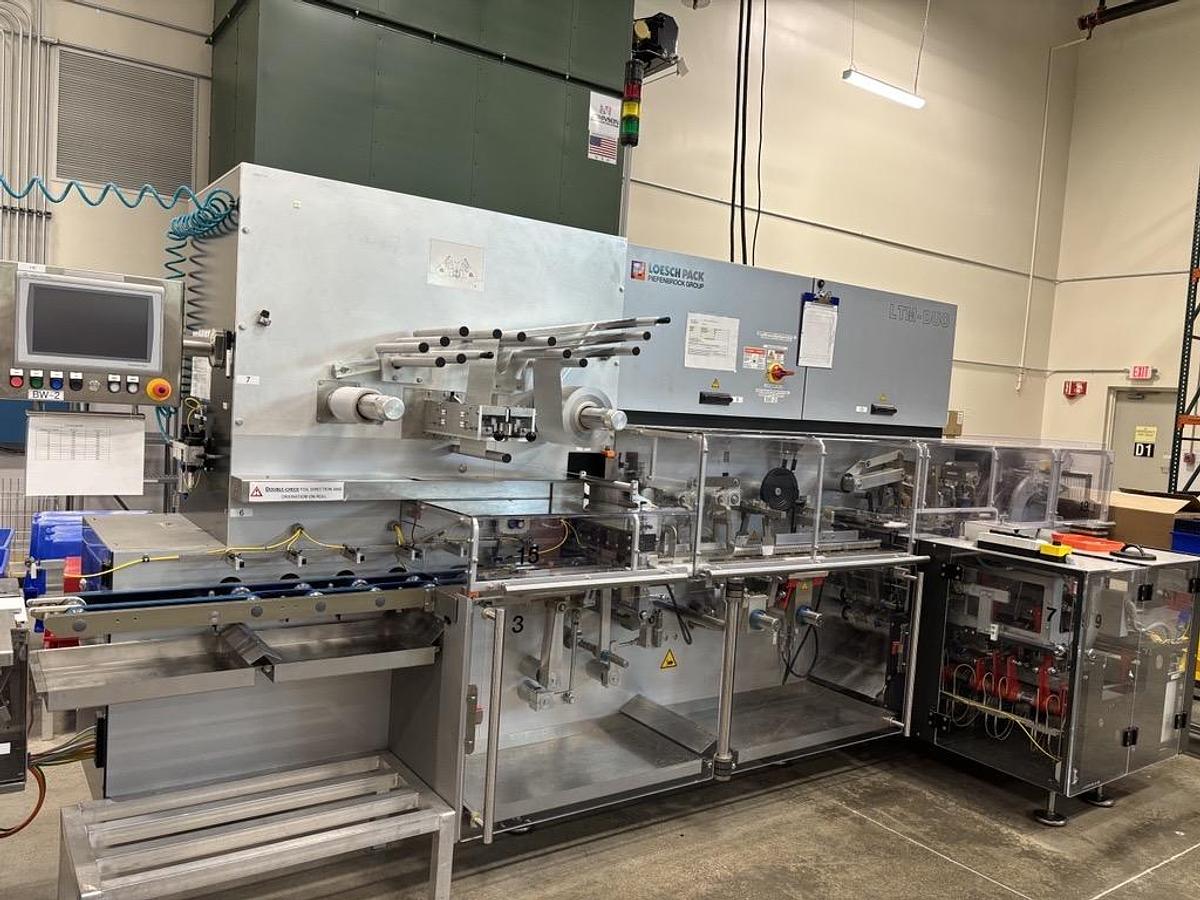

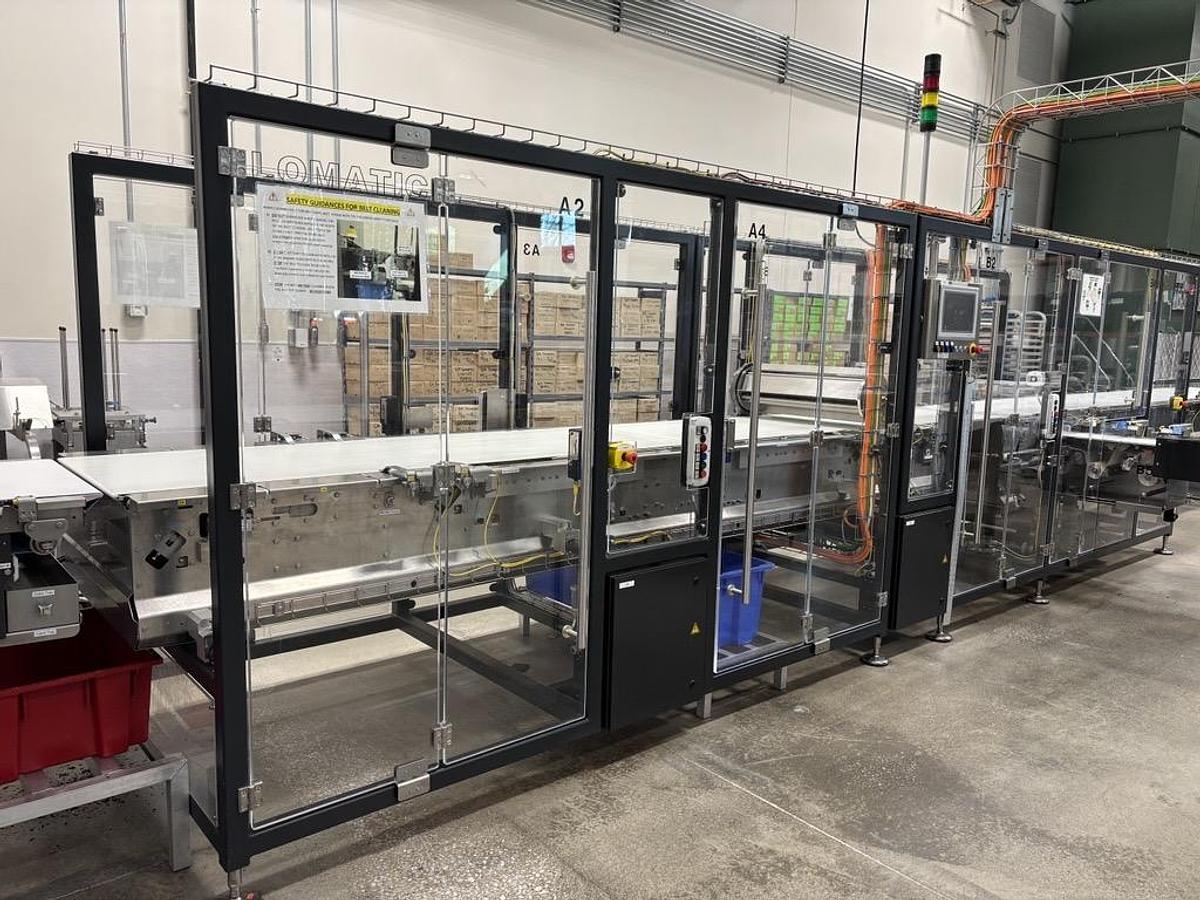

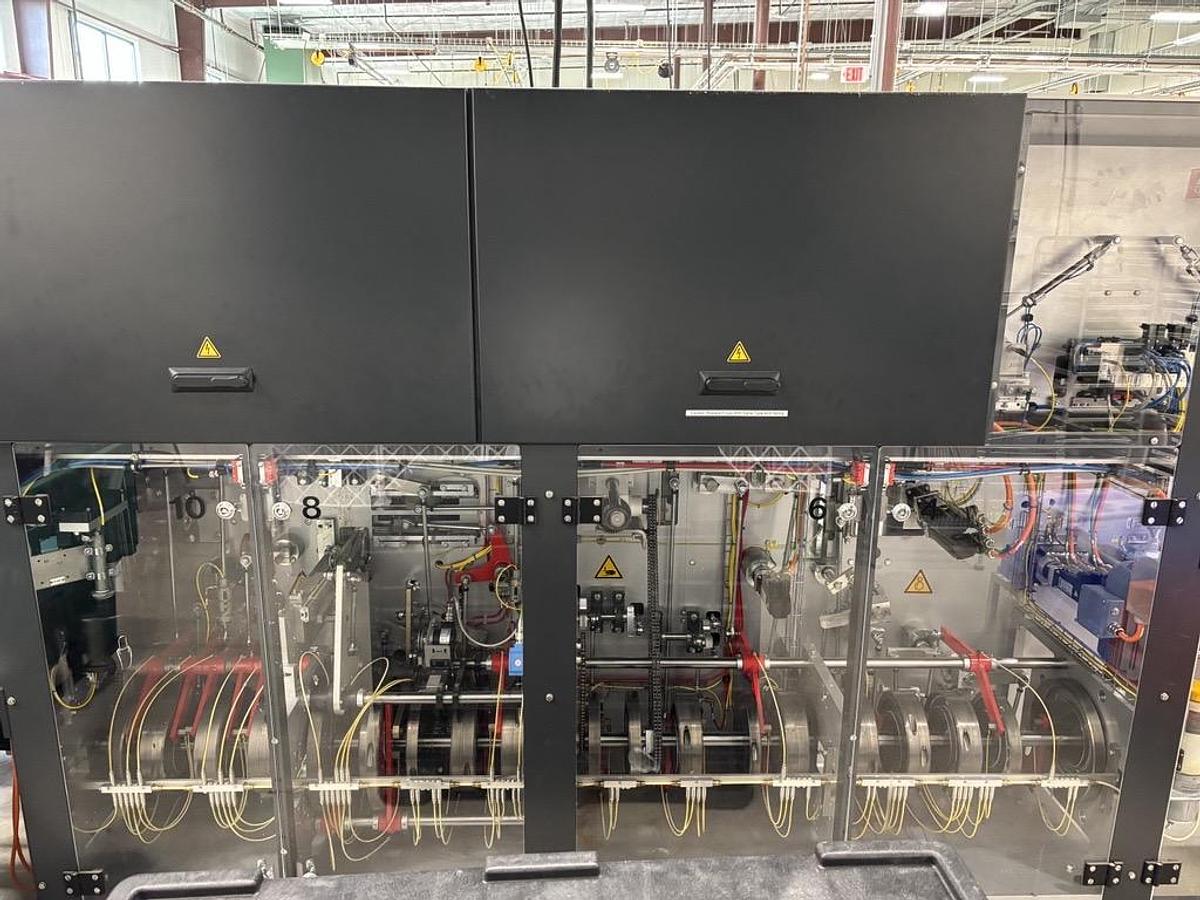

Imperial 600 x 225 One Shot Molding Plant with Loesch Bar Wrapper

Imperial 600 x 225 One Shot Molding Plant with Loesch Bar Wrapper Imperial 600 x 225 One Shot Molding Plant - Built 2017 and commission in 2018 - Model 5C/225/600 - Solid/Inclusion/One shot capabilities - 600 x 225 mold size (bar sizes: 146 x 70 x 8 mm and 146 x 70 x 12 mm x 7 across per mold - generic without logos)

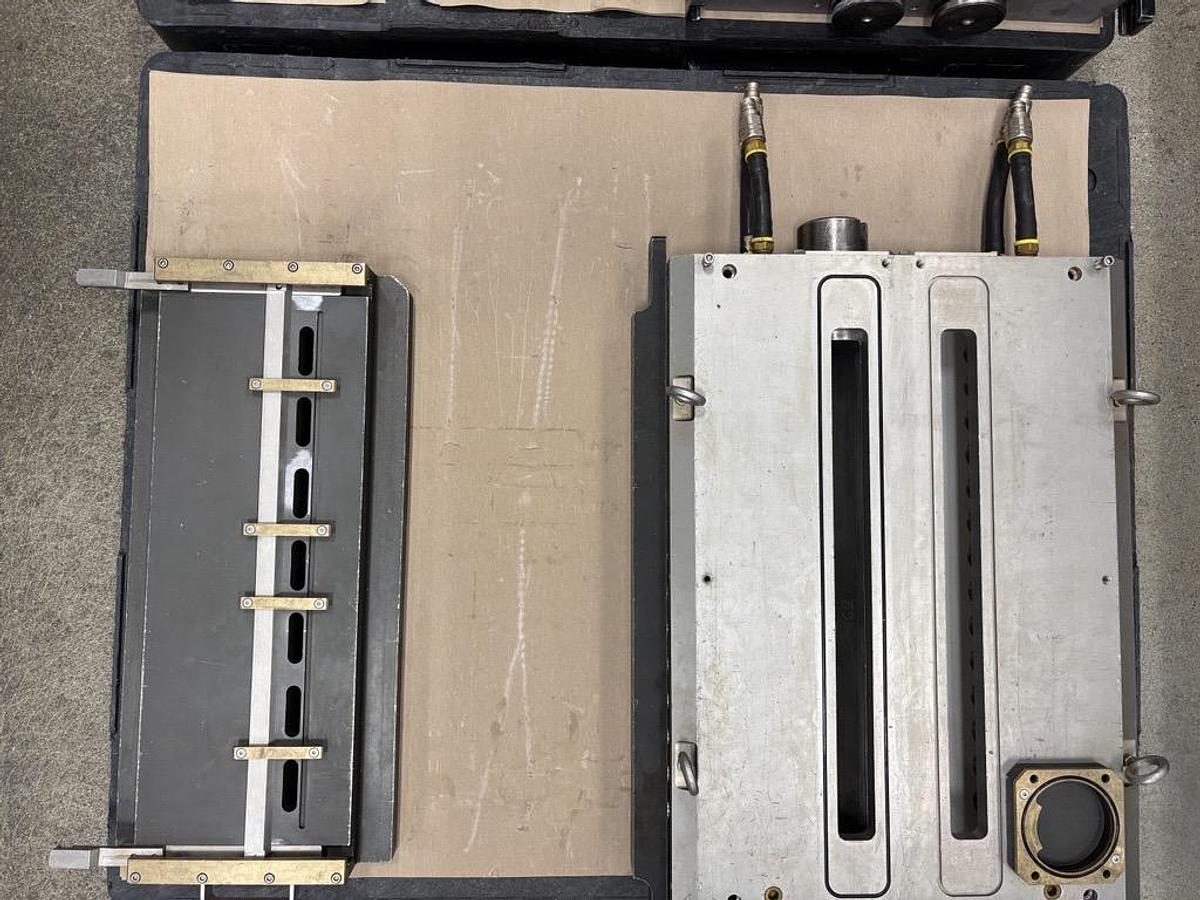

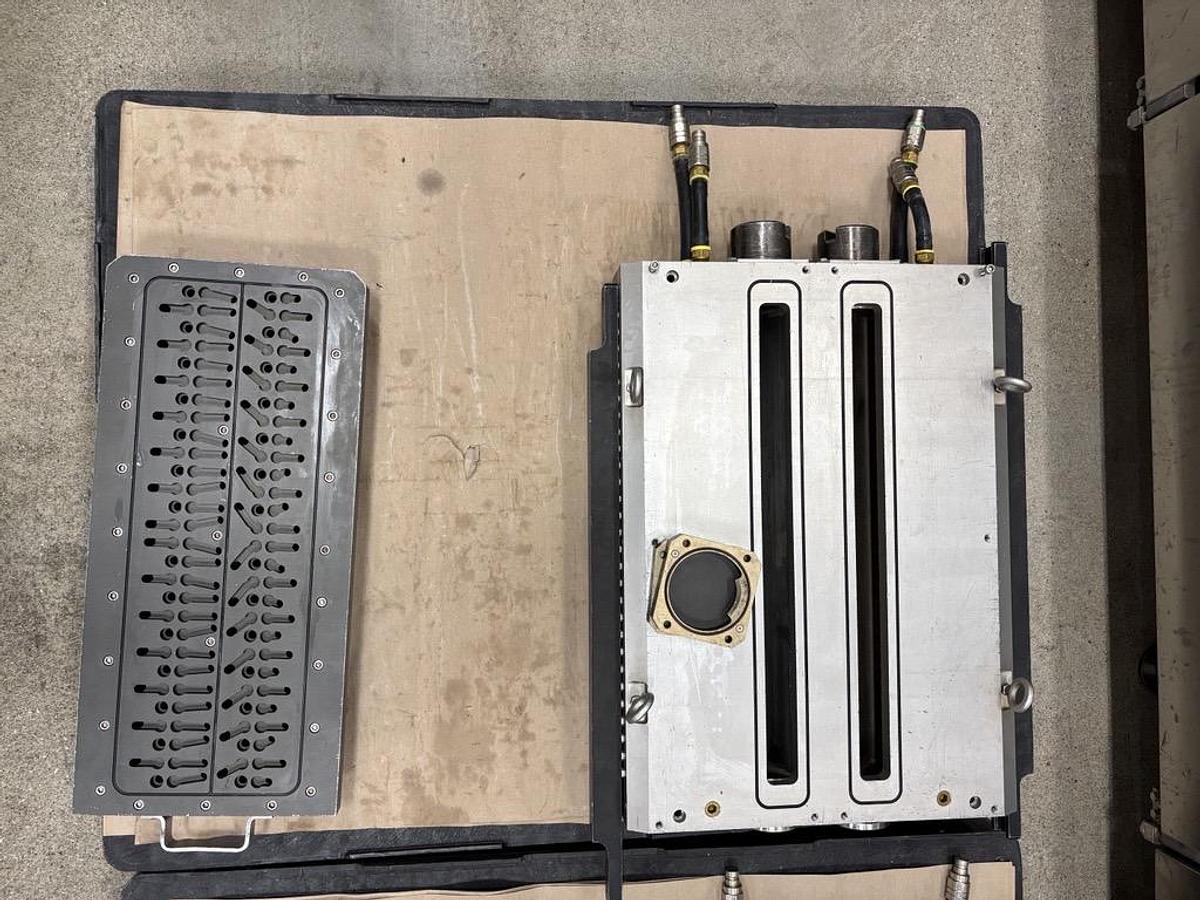

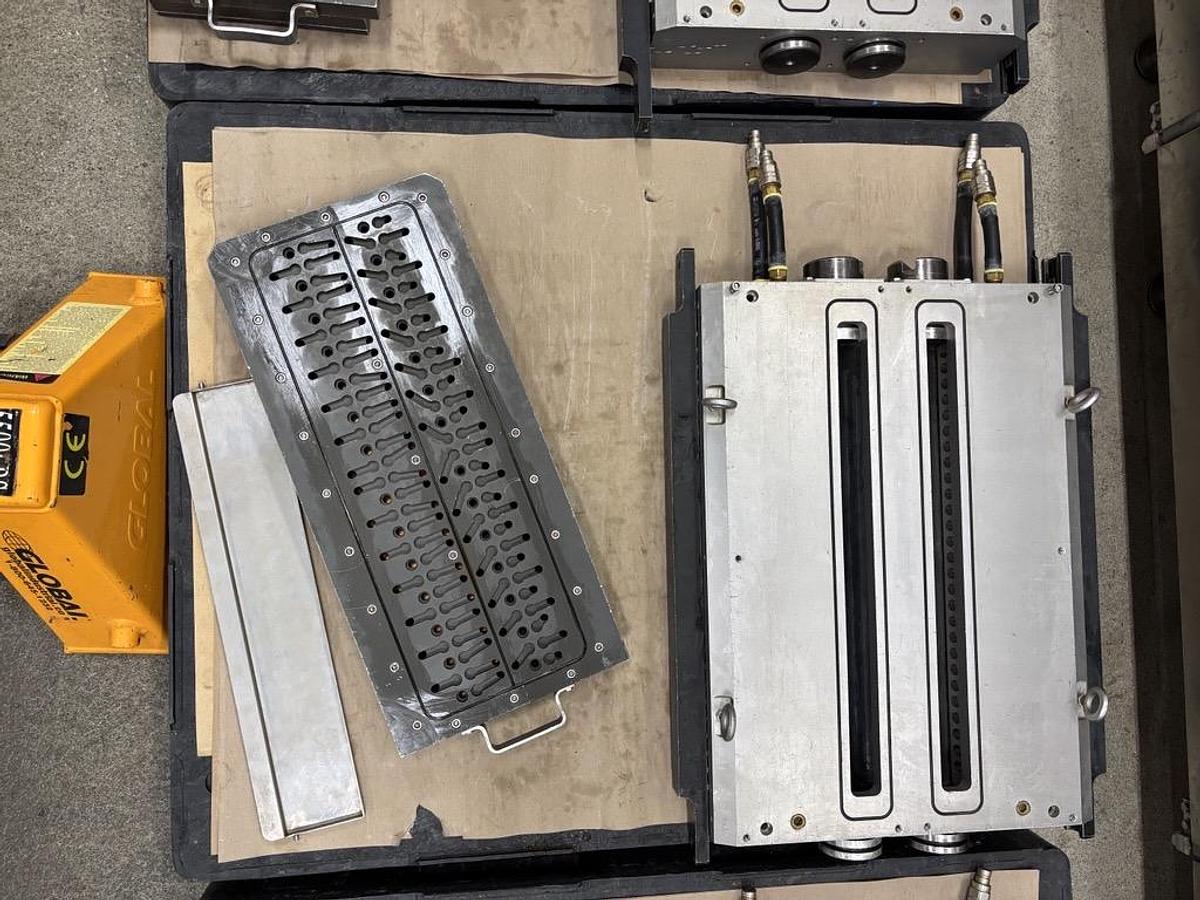

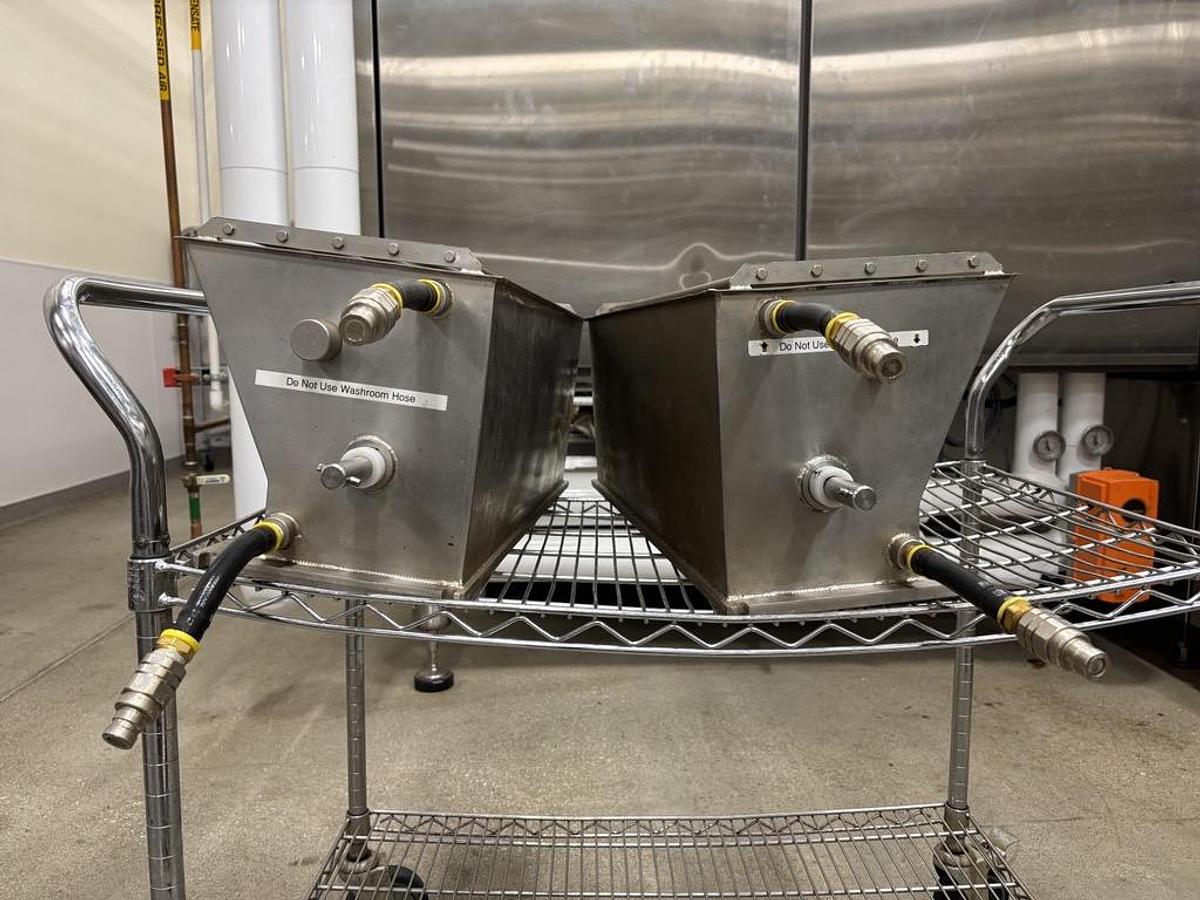

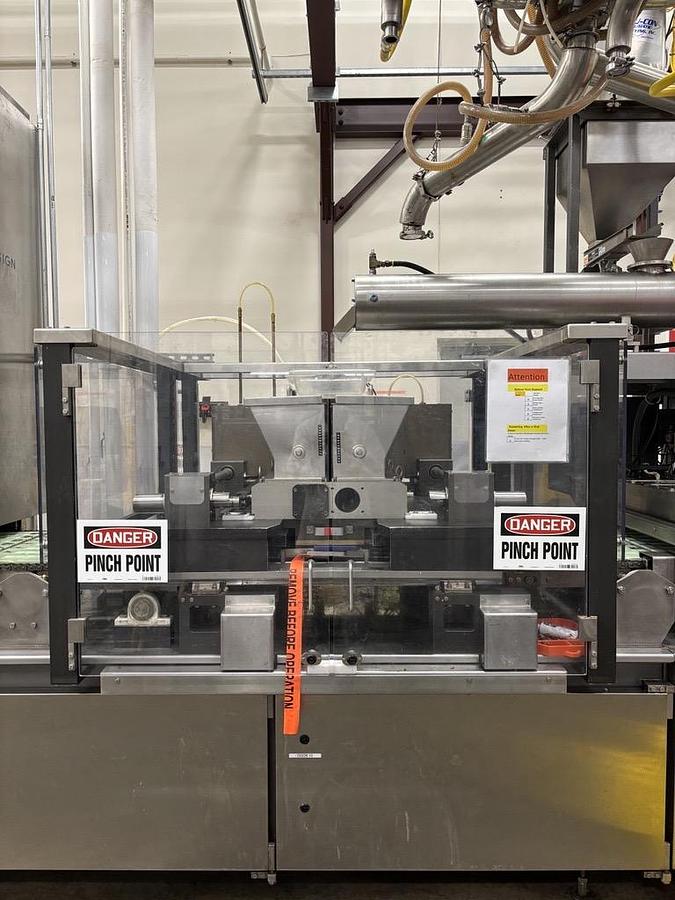

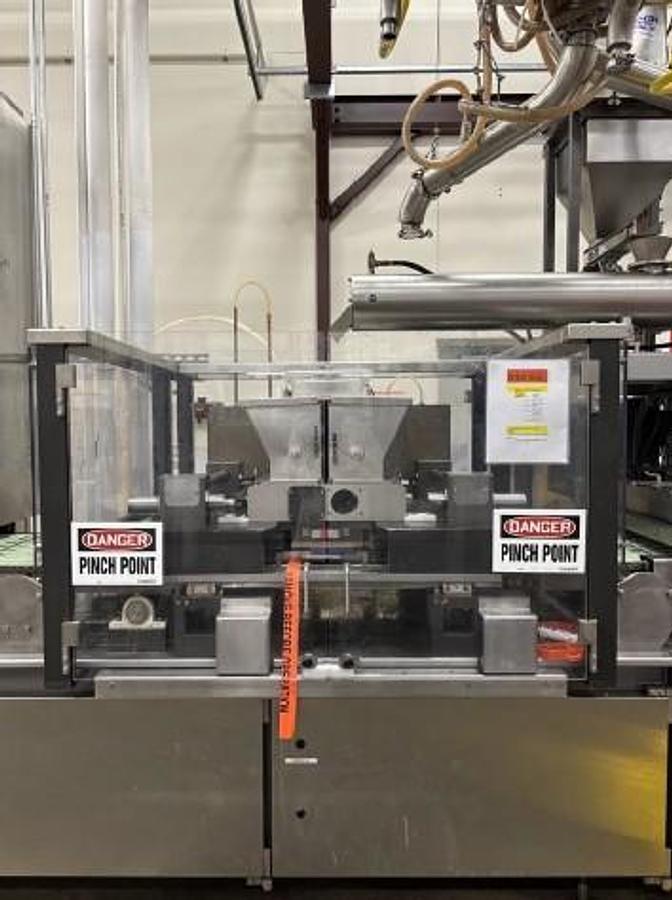

• One set of molds for above size included with the line - ) - Up to 20 molds/minute - Overall dimensions: 84 ft long x 12 ft x 9,5 ft tall - Mold heater - Depositor -Two Stainless Steel Hoppers with variable speed agitator, two hot water circulation systems (one for each hopper) - Servo driven for mold lift, piston strokes, speed and suck back for accurate weight control and center/shell ratio - Mold circuit servo driven with continuous movement and control - Vibration: Six independent stations each with variable speed controls, insulated doors and panels and alternate direction vibration cycles - Cooling: Mild steel tubular frame painted with steel-it, with stainless steel insulated doors and panels (5 section cooler) - Refrigeration: Tunnel to be supplied with direct expansion coils. The air blower supplied with the tunnel with circulate chilled air throughout the tunnel - De-Molding: Includes both twisting and variable speed mold knocking with insulated and doors and panels - Take-Away Conveyor: Separate independent servo drive for precisely matching the mold speed - Control panels: Touch screen operator interface with Allen Bradley - Voltage: 3 phase, 60 cycle, 460 volts - Change parts Include - Two piston blocks for inclusions - Two depositing plates for inclusions with shut off knife - One piston block for one shot - One deposit plate for one shot - Two SS water jacketed hoppers - Automatic Inclusion Feeder Systems - Stainless steel mixing auger with vibratory inclusion feeder - Level sensing valves - Vacuum refill unit with hose - Mounts over depositor - Closed tube auger (stainless steel water jacketed) - Self contained water heating system - Dry inclusion only - Portable Mettler Toledo Safeline Metal Detector Loesch Lomatic/LTM-Duo Bar wrapper with Buffering Belt - Built 2017 and installed 2018 - Fold wrap with paper laminated aluminum foil from reel and paper envelope from stack - Change parts for cardboard overwrap included (Loesch setup service integration required) - Change parts for two bars: 146 x 70 x 8 mm and 146 x 70 x 12 mm - Nordson Pro Blue Series hot melt applicator - Domino date coder We can quote the Molding line and Loesch buffering/wrapping system separately. Line is still installed and running through January 2017. It can be inspected in production.
